This class holds an indexed expression. More...

#include <indexed.h>

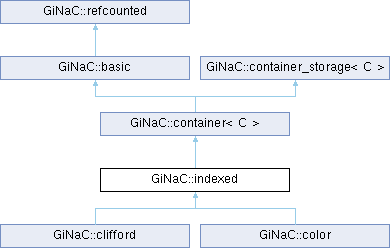

Inheritance diagram for GiNaC::indexed:

Public Member Functions
	indexed (const ex &b)
	Construct indexed object with no index. More...

	indexed (const ex &b, const ex &i1)
	Construct indexed object with one index. More...

	indexed (const ex &b, const ex &i1, const ex &i2)
	Construct indexed object with two indices. More...

	indexed (const ex &b, const ex &i1, const ex &i2, const ex &i3)
	Construct indexed object with three indices. More...

	indexed (const ex &b, const ex &i1, const ex &i2, const ex &i3, const ex &i4)
	Construct indexed object with four indices. More...

	indexed (const ex &b, const symmetry &symm, const ex &i1, const ex &i2)
	Construct indexed object with two indices and a specified symmetry. More...

	indexed (const ex &b, const symmetry &symm, const ex &i1, const ex &i2, const ex &i3)
	Construct indexed object with three indices and a specified symmetry. More...

	indexed (const ex &b, const symmetry &symm, const ex &i1, const ex &i2, const ex &i3, const ex &i4)
	Construct indexed object with four indices and a specified symmetry. More...

	indexed (const ex &b, const exvector &iv)
	Construct indexed object with a specified vector of indices. More...

	indexed (const ex &b, const symmetry &symm, const exvector &iv)
	Construct indexed object with a specified vector of indices and symmetry. More...

	indexed (const symmetry &symm, const exprseq &es)

	indexed (const symmetry &symm, const exvector &v)

	indexed (const symmetry &symm, exvector &&v)

unsigned	precedence () const override
	Return relative operator precedence (for parenthezing output). More...

bool	info (unsigned inf) const override
	Information about the object. More...

ex	eval () const override
	Perform automatic non-interruptive term rewriting rules. More...

ex	real_part () const override

ex	imag_part () const override

exvector	get_free_indices () const override
	Return a vector containing the free indices of an expression. More...

void	archive (archive_node &n) const override
	Save (a.k.a. More...

void	read_archive (const archive_node &n, lst &syms) override
	Read (a.k.a. More...

bool	all_index_values_are (unsigned inf) const
	Check whether all index values have a certain property. More...

exvector	get_indices () const
	Return a vector containing the object's indices. More...

exvector	get_dummy_indices () const
	Return a vector containing the dummy indices of the object, if any. More...

exvector	get_dummy_indices (const indexed &other) const
	Return a vector containing the dummy indices in the contraction with another indexed object. More...

bool	has_dummy_index_for (const ex &i) const
	Check whether the object has an index that forms a dummy index pair with a given index. More...

ex	get_symmetry () const
	Return symmetry properties. More...

Public Member Functions inherited from GiNaC::container< C >
	container (STLT const &s)

	container (STLT &&v)

	container (exvector::const_iterator b, exvector::const_iterator e)

	container (std::initializer_list< ex > il)

bool	info (unsigned inf) const override
	Information about the object. More...

unsigned	precedence () const override
	Return relative operator precedence (for parenthezing output). More...

size_t	nops () const override
	Number of operands/members. More...

ex	op (size_t i) const override
	Return operand/member at position i. More...

ex &	let_op (size_t i) override
	Return modifiable operand/member at position i. More...

ex	subs (const exmap &m, unsigned options=0) const override
	Substitute a set of objects by arbitrary expressions. More...

void	read_archive (const archive_node &n, lst &sym_lst) override
	Load (deserialize) the object from an archive node. More...

void	archive (archive_node &n) const override
	Archive the object. More...

container &	prepend (const ex &b)
	Add element at front. More...

container &	append (const ex &b)
	Add element at back. More...

container &	remove_first ()
	Remove first element. More...

container &	remove_last ()
	Remove last element. More...

container &	remove_all ()
	Remove all elements. More...

container &	sort ()
	Sort elements. More...

container &	unique ()
	Remove adjacent duplicate elements. More...

const_iterator	begin () const

const_iterator	end () const

const_reverse_iterator	rbegin () const

const_reverse_iterator	rend () const

Public Member Functions inherited from GiNaC::basic
virtual	~basic ()
	basic destructor, virtual because class ex will delete objects of derived classes via a basic*. More...

	basic (const basic &other)

const basic &	operator= (const basic &other)
	basic assignment operator: the other object might be of a derived class. More...

virtual basic *	duplicate () const
	Create a clone of this object on the heap. More...

virtual ex	eval () const
	Perform automatic non-interruptive term rewriting rules. More...

virtual ex	evalf () const
	Evaluate object numerically. More...

virtual ex	evalm () const
	Evaluate sums, products and integer powers of matrices. More...

virtual ex	eval_integ () const
	Evaluate integrals, if result is known. More...

virtual ex	eval_indexed (const basic &i) const
	Perform automatic symbolic evaluations on indexed expression that contains this object as the base expression. More...

virtual void	print (const print_context &c, unsigned level=0) const
	Output to stream. More...

virtual void	dbgprint () const
	Little wrapper around print to be called within a debugger. More...

virtual void	dbgprinttree () const
	Little wrapper around printtree to be called within a debugger. More...

virtual unsigned	precedence () const
	Return relative operator precedence (for parenthezing output). More...

virtual bool	info (unsigned inf) const
	Information about the object. More...

virtual size_t	nops () const
	Number of operands/members. More...

virtual ex	op (size_t i) const
	Return operand/member at position i. More...

virtual ex	operator[] (const ex &index) const

virtual ex	operator[] (size_t i) const

virtual ex &	let_op (size_t i)
	Return modifiable operand/member at position i. More...

virtual ex &	operator[] (const ex &index)

virtual ex &	operator[] (size_t i)

virtual bool	has (const ex &other, unsigned options=0) const
	Test for occurrence of a pattern. More...

virtual bool	match (const ex &pattern, exmap &repls) const
	Check whether the expression matches a given pattern. More...

virtual ex	subs (const exmap &m, unsigned options=0) const
	Substitute a set of objects by arbitrary expressions. More...

virtual ex	map (map_function &f) const
	Construct new expression by applying the specified function to all sub-expressions (one level only, not recursively). More...

virtual void	accept (GiNaC::visitor &v) const

virtual bool	is_polynomial (const ex &var) const
	Check whether this is a polynomial in the given variables. More...

virtual int	degree (const ex &s) const
	Return degree of highest power in object s. More...

virtual int	ldegree (const ex &s) const
	Return degree of lowest power in object s. More...

virtual ex	coeff (const ex &s, int n=1) const
	Return coefficient of degree n in object s. More...

virtual ex	expand (unsigned options=0) const
	Expand expression, i.e. More...

virtual ex	collect (const ex &s, bool distributed=false) const
	Sort expanded expression in terms of powers of some object(s). More...

virtual ex	series (const relational &r, int order, unsigned options=0) const
	Default implementation of ex::series(). More...

virtual ex	normal (exmap &repl, exmap &rev_lookup, lst &modifier) const
	Default implementation of ex::normal(). More...

virtual ex	to_rational (exmap &repl) const
	Default implementation of ex::to_rational(). More...

virtual ex	to_polynomial (exmap &repl) const

virtual numeric	integer_content () const

virtual ex	smod (const numeric &xi) const
	Apply symmetric modular homomorphism to an expanded multivariate polynomial. More...

virtual numeric	max_coefficient () const
	Implementation ex::max_coefficient(). More...

virtual exvector	get_free_indices () const
	Return a vector containing the free indices of an expression. More...

virtual ex	add_indexed (const ex &self, const ex &other) const
	Add two indexed expressions. More...

virtual ex	scalar_mul_indexed (const ex &self, const numeric &other) const
	Multiply an indexed expression with a scalar. More...

virtual bool	contract_with (exvector::iterator self, exvector::iterator other, exvector &v) const
	Try to contract two indexed expressions that appear in the same product. More...

virtual unsigned	return_type () const

virtual return_type_t	return_type_tinfo () const

virtual ex	conjugate () const

virtual ex	real_part () const

virtual ex	imag_part () const

template<class T >
void	print_dispatch (const print_context &c, unsigned level) const
	Like print(), but dispatch to the specified class. More...

void	print_dispatch (const registered_class_info &ri, const print_context &c, unsigned level) const
	Like print(), but dispatch to the specified class. More...

virtual void	archive (archive_node &n) const
	Save (serialize) the object into archive node. More...

virtual void	read_archive (const archive_node &n, lst &syms)
	Load (deserialize) the object from an archive node. More...

ex	subs_one_level (const exmap &m, unsigned options) const
	Helper function for subs(). More...

ex	diff (const symbol &s, unsigned nth=1) const
	Default interface of nth derivative ex::diff(s, n). More...

int	compare (const basic &other) const
	Compare objects syntactically to establish canonical ordering. More...

bool	is_equal (const basic &other) const
	Test for syntactic equality. More...

const basic &	hold () const
	Stop further evaluation. More...

unsigned	gethash () const

const basic &	setflag (unsigned f) const
	Set some status_flags. More...

const basic &	clearflag (unsigned f) const
	Clear some status_flags. More...

Public Member Functions inherited from GiNaC::refcounted
	refcounted () noexcept

unsigned int	add_reference () noexcept

unsigned int	remove_reference () noexcept

unsigned int	get_refcount () const noexcept

void	set_refcount (unsigned int r) noexcept

Protected Member Functions
ex	derivative (const symbol &s) const override
	Implementation of ex::diff() for an indexed object always returns 0. More...

ex	thiscontainer (const exvector &v) const override

ex	thiscontainer (exvector &&v) const override

unsigned	return_type () const override

return_type_t	return_type_tinfo () const override

ex	expand (unsigned options=0) const override
	Expand expression, i.e. More...

void	printindices (const print_context &c, unsigned level) const

void	print_indexed (const print_context &c, const char openbrace, const char closebrace, unsigned level) const

void	do_print (const print_context &c, unsigned level) const

void	do_print_latex (const print_latex &c, unsigned level) const

void	do_print_tree (const print_tree &c, unsigned level) const

void	validate () const
	Check whether all indices are of class idx and validate the symmetry tree. More...

Protected Member Functions inherited from GiNaC::container< C >
ex	conjugate () const override

ex	real_part () const override

ex	imag_part () const override

bool	is_equal_same_type (const basic &other) const override
	Returns true if two objects of same type are equal. More...

virtual ex	thiscontainer (const STLT &v) const
	Similar to duplicate(), but with a preset sequence. More...

virtual ex	thiscontainer (STLT &&v) const
	Similar to duplicate(), but with a preset sequence (which gets pilfered). More...

virtual void	printseq (const print_context &c, char openbracket, char delim, char closebracket, unsigned this_precedence, unsigned upper_precedence=0) const
	Print sequence of contained elements. More...

void	do_print (const print_context &c, unsigned level) const

void	do_print_tree (const print_tree &c, unsigned level) const

void	do_print_python (const print_python &c, unsigned level) const

void	do_print_python_repr (const print_python_repr &c, unsigned level) const

STLT	subschildren (const exmap &m, unsigned options=0) const

Protected Member Functions inherited from GiNaC::basic
	basic ()

virtual ex	eval_ncmul (const exvector &v) const

virtual bool	match_same_type (const basic &other) const
	Returns true if the attributes of two objects are similar enough for a match. More...

virtual ex	derivative (const symbol &s) const
	Default implementation of ex::diff(). More...

virtual int	compare_same_type (const basic &other) const
	Returns order relation between two objects of same type. More...

virtual bool	is_equal_same_type (const basic &other) const
	Returns true if two objects of same type are equal. More...

virtual unsigned	calchash () const
	Compute the hash value of an object and if it makes sense to store it in the objects status_flags, do so. More...

void	ensure_if_modifiable () const
	Ensure the object may be modified without hurting others, throws if this is not the case. More...

void	do_print (const print_context &c, unsigned level) const
	Default output to stream. More...

void	do_print_tree (const print_tree &c, unsigned level) const
	Tree output to stream. More...

void	do_print_python_repr (const print_python_repr &c, unsigned level) const
	Python parsable output to stream. More...

Protected Member Functions inherited from GiNaC::container_storage< C >
	container_storage ()

	container_storage (size_t n, const ex &e)

	container_storage (std::initializer_list< ex > il)

template<class In >
	container_storage (In b, In e)

void	reserve (size_t)

	~container_storage ()

void	reserve (size_t n)

void	reserve (std::vector< ex > &v, size_t n)

Protected Attributes
ex	symtree
	Index symmetry (tree of symmetry objects) More...

Protected Attributes inherited from GiNaC::basic
unsigned	flags
	of type status_flags More...

unsigned	hashvalue
	hash value More...

Protected Attributes inherited from GiNaC::container_storage< C >
STLT	seq

Friends
ex	simplify_indexed (const ex &e, exvector &free_indices, exvector &dummy_indices, const scalar_products &sp)
	Simplify indexed expression, return list of free indices. More...

ex	simplify_indexed_product (const ex &e, exvector &free_indices, exvector &dummy_indices, const scalar_products &sp)
	Simplify product of indexed expressions (commutative, noncommutative and simple squares), return list of free indices. More...

bool	reposition_dummy_indices (ex &e, exvector &variant_dummy_indices, exvector &moved_indices)
	Raise/lower dummy indices in a single indexed objects to canonicalize their variance. More...

Additional Inherited Members
Public Types inherited from GiNaC::container< C >
typedef STLT::const_iterator	const_iterator

typedef STLT::const_reverse_iterator	const_reverse_iterator

Protected Types inherited from GiNaC::container< C >
typedef container_storage< C >::STLT	STLT

Protected Types inherited from GiNaC::container_storage< C >
typedef C< ex >	STLT

Static Protected Member Functions inherited from GiNaC::container< C >
static unsigned	get_default_flags ()
	Specialization of container::get_default_flags() for lst. More...

static char	get_open_delim ()
	Specialization of container::get_open_delim() for lst. More...

static char	get_close_delim ()
	Specialization of container::get_close_delim() for lst. More...

Static Protected Member Functions inherited from GiNaC::container_storage< C >
static void	reserve (STLT &, size_t)

Detailed Description

This class holds an indexed expression.

It consists of a 'base' expression (the expression being indexed) which can be accessed as op(0), and n (n >= 0) indices (all of class idx), accessible as op(1)..op(n).

Definition at line 39 of file indexed.h.

Constructor & Destructor Documentation

◆ indexed() [1/13]

GiNaC::indexed::indexed ( const ex & b )

Construct indexed object with no index.

Parameters

b	Base expression

Definition at line 64 of file indexed.cpp.

References validate().

Referenced by GiNaC::clifford::get_metric(), and thiscontainer().

◆ indexed() [2/13]

GiNaC::indexed::indexed	(	const ex &	b,
		const ex &	i1
	)

Construct indexed object with one index.

The index must be of class idx.

Parameters

b	Base expression
i1	The index

Definition at line 69 of file indexed.cpp.

References validate().

◆ indexed() [3/13]

GiNaC::indexed::indexed	(	const ex &	b,
		const ex &	i1,
		const ex &	i2
	)

Construct indexed object with two indices.

The indices must be of class idx.

Parameters

b	Base expression
i1	First index
i2	Second index

Definition at line 74 of file indexed.cpp.

References validate().

◆ indexed() [4/13]

GiNaC::indexed::indexed	(	const ex &	b,
		const ex &	i1,
		const ex &	i2,
		const ex &	i3
	)

Construct indexed object with three indices.

The indices must be of class idx.

Parameters

b	Base expression
i1	First index
i2	Second index
i3	Third index

Definition at line 79 of file indexed.cpp.

References validate().

◆ indexed() [5/13]

GiNaC::indexed::indexed	(	const ex &	b,
		const ex &	i1,
		const ex &	i2,
		const ex &	i3,
		const ex &	i4
	)

Construct indexed object with four indices.

The indices must be of class idx.

Parameters

b	Base expression
i1	First index
i2	Second index
i3	Third index
i4	Fourth index

Definition at line 84 of file indexed.cpp.

References validate().

◆ indexed() [6/13]

GiNaC::indexed::indexed	(	const ex &	b,
		const symmetry &	symm,
		const ex &	i1,
		const ex &	i2
	)

Construct indexed object with two indices and a specified symmetry.

The indices must be of class idx.

Parameters

b	Base expression
symm	Symmetry of indices
i1	First index
i2	Second index

Definition at line 89 of file indexed.cpp.

References validate().

◆ indexed() [7/13]

GiNaC::indexed::indexed	(	const ex &	b,
		const symmetry &	symm,
		const ex &	i1,
		const ex &	i2,
		const ex &	i3
	)

Construct indexed object with three indices and a specified symmetry.

The indices must be of class idx.

Parameters

b	Base expression
symm	Symmetry of indices
i1	First index
i2	Second index
i3	Third index

Definition at line 94 of file indexed.cpp.

References validate().

◆ indexed() [8/13]

GiNaC::indexed::indexed	(	const ex &	b,
		const symmetry &	symm,
		const ex &	i1,
		const ex &	i2,
		const ex &	i3,
		const ex &	i4
	)

Construct indexed object with four indices and a specified symmetry.

The indices must be of class idx.

Parameters

b	Base expression
symm	Symmetry of indices
i1	First index
i2	Second index
i3	Third index
i4	Fourth index

Definition at line 99 of file indexed.cpp.

References validate().

◆ indexed() [9/13]

GiNaC::indexed::indexed	(	const ex &	b,
		const exvector &	iv
	)

Construct indexed object with a specified vector of indices.

The indices must be of class idx.

Parameters

b	Base expression
iv	Vector of indices

Definition at line 104 of file indexed.cpp.

References GiNaC::container_storage< C >::seq, and validate().

◆ indexed() [10/13]

GiNaC::indexed::indexed	(	const ex &	b,
		const symmetry &	symm,
		const exvector &	iv
	)

Construct indexed object with a specified vector of indices and symmetry.

The indices must be of class idx.

Parameters

b	Base expression
symm	Symmetry of indices
iv	Vector of indices

Definition at line 110 of file indexed.cpp.

References GiNaC::container_storage< C >::seq, and validate().

◆ indexed() [11/13]

GiNaC::indexed::indexed	(	const symmetry &	symm,
		const exprseq &	es
	)

Definition at line 116 of file indexed.cpp.

◆ indexed() [12/13]

GiNaC::indexed::indexed	(	const symmetry &	symm,
		const exvector &	v
	)

Definition at line 120 of file indexed.cpp.

◆ indexed() [13/13]

GiNaC::indexed::indexed	(	const symmetry &	symm,
		exvector &&	v
	)

Definition at line 124 of file indexed.cpp.

Member Function Documentation

◆ precedence()

unsigned GiNaC::indexed::precedence ( ) const

inlineoverridevirtual

Return relative operator precedence (for parenthezing output).

Reimplemented from GiNaC::container< C >.

Definition at line 136 of file indexed.h.

Referenced by print_indexed().

◆ info()

bool GiNaC::indexed::info ( unsigned inf ) const

overridevirtual

Information about the object.

See also: class info_flags

Reimplemented from GiNaC::container< C >.

Definition at line 239 of file indexed.cpp.

References GiNaC::info_flags::has_indices, GiNaC::info_flags::indexed, and GiNaC::container_storage< C >::seq.

Referenced by imag_part(), and real_part().

◆ eval()

ex GiNaC::indexed::eval ( ) const

overridevirtual

Perform automatic non-interruptive term rewriting rules.

Reimplemented from GiNaC::basic.

Definition at line 263 of file indexed.cpp.

References GiNaC::_ex0, GiNaC::canonicalize(), GiNaC::basic::ex, GINAC_ASSERT, GiNaC::ex::is_zero(), GiNaC::ex::nops(), GiNaC::ex::op(), GiNaC::container_storage< C >::seq, symtree, and thiscontainer().

◆ real_part()

ex GiNaC::indexed::real_part ( ) const

overridevirtual

Reimplemented from GiNaC::container< C >.

Definition at line 299 of file indexed.cpp.

References info(), GiNaC::container< C >::op(), and GiNaC::info_flags::real.

◆ imag_part()

ex GiNaC::indexed::imag_part ( ) const

overridevirtual

Reimplemented from GiNaC::container< C >.

Definition at line 306 of file indexed.cpp.

References info(), GiNaC::container< C >::op(), and GiNaC::info_flags::real.

◆ get_free_indices()

exvector GiNaC::indexed::get_free_indices ( ) const

overridevirtual

Return a vector containing the free indices of an expression.

Reimplemented from GiNaC::basic.

Definition at line 457 of file indexed.cpp.

References GiNaC::find_free_and_dummy(), and GiNaC::container_storage< C >::seq.

Referenced by get_dummy_indices().

◆ archive()

void GiNaC::indexed::archive ( archive_node & n ) const

overridevirtual

Save (a.k.a.

serialize) indexed object into archive.

Reimplemented from GiNaC::container< C >.

Definition at line 155 of file indexed.cpp.

References n, and symtree.

◆ read_archive()

void GiNaC::indexed::read_archive	(	const archive_node &	n,
		lst &	syms
	)

overridevirtual

Read (a.k.a.

deserialize) indexed object from archive.

Reimplemented from GiNaC::container< C >.

Definition at line 132 of file indexed.cpp.

References n, GiNaC::not_symmetric(), GiNaC::container_storage< C >::seq, GiNaC::sy_anti(), GiNaC::sy_symm(), GiNaC::symm(), symtree, and validate().

◆ derivative()

ex GiNaC::indexed::derivative ( const symbol & s ) const

overrideprotectedvirtual

Implementation of ex::diff() for an indexed object always returns 0.

See also: ex::diff

Reimplemented from GiNaC::basic.

Definition at line 388 of file indexed.cpp.

References GiNaC::_ex0.

◆ thiscontainer() [1/2]

ex GiNaC::indexed::thiscontainer ( const exvector & v ) const

overrideprotected

Definition at line 313 of file indexed.cpp.

References indexed(), and symtree.

Referenced by eval(), and expand().

◆ thiscontainer() [2/2]

ex GiNaC::indexed::thiscontainer ( exvector && v ) const

overrideprotected

Definition at line 318 of file indexed.cpp.

References indexed(), and symtree.

◆ return_type()

unsigned GiNaC::indexed::return_type ( ) const

overrideprotectedvirtual

Reimplemented from GiNaC::basic.

Definition at line 323 of file indexed.cpp.

References GiNaC::return_types::commutative, GiNaC::container< C >::op(), and GiNaC::ex::return_type().

◆ return_type_tinfo()

return_type_t GiNaC::indexed::return_type_tinfo ( ) const

inlineoverrideprotectedvirtual

Reimplemented from GiNaC::basic.

Definition at line 152 of file indexed.h.

References GiNaC::container< C >::op(), and GiNaC::ex::return_type_tinfo().

◆ expand()

ex GiNaC::indexed::expand ( unsigned options = 0 ) const

overrideprotectedvirtual

Expand expression, i.e.

multiply it out and return the result as a new expression.

Reimplemented from GiNaC::basic.

Definition at line 331 of file indexed.cpp.

References GiNaC::_ex0, GiNaC::are_ex_trivially_equal(), GiNaC::expand(), GiNaC::ex::expand(), GiNaC::expand_options::expand_indexed, GINAC_ASSERT, GiNaC::ex::nops(), GiNaC::ex::op(), options, GiNaC::container_storage< C >::seq, and thiscontainer().

◆ all_index_values_are()

bool GiNaC::indexed::all_index_values_are ( unsigned inf ) const

Check whether all index values have a certain property.

See also: class info_flags

Definition at line 246 of file indexed.cpp.

References GiNaC::container_storage< C >::seq.

◆ get_indices()

exvector GiNaC::indexed::get_indices ( ) const

Return a vector containing the object's indices.

Definition at line 423 of file indexed.cpp.

References GINAC_ASSERT, and GiNaC::container_storage< C >::seq.

◆ get_dummy_indices() [1/2]

exvector GiNaC::indexed::get_dummy_indices ( ) const

Return a vector containing the dummy indices of the object, if any.

Definition at line 429 of file indexed.cpp.

References GiNaC::find_free_and_dummy(), and GiNaC::container_storage< C >::seq.

◆ get_dummy_indices() [2/2]

exvector GiNaC::indexed::get_dummy_indices ( const indexed & other ) const

Return a vector containing the dummy indices in the contraction with another indexed object.

This is symmetric: a.get_dummy_indices(b) == b.get_dummy_indices(a)

Definition at line 436 of file indexed.cpp.

References GiNaC::find_dummy_indices(), and get_free_indices().

◆ has_dummy_index_for()

bool GiNaC::indexed::has_dummy_index_for ( const ex & i ) const

Check whether the object has an index that forms a dummy index pair with a given index.

Definition at line 446 of file indexed.cpp.

References GiNaC::is_dummy_pair(), and GiNaC::container_storage< C >::seq.

◆ get_symmetry()

ex GiNaC::indexed::get_symmetry ( ) const

inline

Return symmetry properties.

Definition at line 180 of file indexed.h.

References symtree.

Referenced by GiNaC::clifford::get_metric().

◆ printindices()

void GiNaC::indexed::printindices	(	const print_context &	c,
		unsigned	level
	)		const

protected

Definition at line 165 of file indexed.cpp.

References c, and GiNaC::container_storage< C >::seq.

Referenced by GiNaC::clifford::do_print_dflt(), GiNaC::clifford::do_print_tree(), do_print_tree(), and print_indexed().

◆ print_indexed()

void GiNaC::indexed::print_indexed	(	const print_context &	c,
		const char *	openbrace,
		const char *	closebrace,
		unsigned	level
	)		const

protected

Definition at line 207 of file indexed.cpp.

References c, precedence(), printindices(), and GiNaC::container_storage< C >::seq.

Referenced by do_print(), and do_print_latex().

◆ do_print()

void GiNaC::indexed::do_print	(	const print_context &	c,
		unsigned	level
	)		const

protected

Definition at line 219 of file indexed.cpp.

References c, and print_indexed().

◆ do_print_latex()

void GiNaC::indexed::do_print_latex	(	const print_latex &	c,
		unsigned	level
	)		const

protected

Definition at line 224 of file indexed.cpp.

References c, and print_indexed().

◆ do_print_tree()

void GiNaC::indexed::do_print_tree	(	const print_tree &	c,
		unsigned	level
	)		const

protected

Definition at line 229 of file indexed.cpp.

References c, GiNaC::basic::flags, GiNaC::basic::hashvalue, printindices(), GiNaC::container_storage< C >::seq, and symtree.

◆ validate()

void GiNaC::indexed::validate ( ) const

protected

Check whether all indices are of class idx and validate the symmetry tree.

This function is used internally to make sure that all constructed indexed objects really carry indices and not some other classes.

Definition at line 368 of file indexed.cpp.

References GINAC_ASSERT, GiNaC::ex::is_zero(), GiNaC::container_storage< C >::seq, symtree, and validate().

Referenced by indexed(), read_archive(), and validate().

Friends And Related Function Documentation

◆ simplify_indexed

ex simplify_indexed	(	const ex &	e,
		exvector &	free_indices,
		exvector &	dummy_indices,
		const scalar_products &	sp
	)

friend

Simplify indexed expression, return list of free indices.

Definition at line 1044 of file indexed.cpp.

Referenced by GiNaC::clifford::get_metric(), and GiNaC::clifford::same_metric().

◆ simplify_indexed_product

ex simplify_indexed_product	(	const ex &	e,
		exvector &	free_indices,
		exvector &	dummy_indices,
		const scalar_products &	sp
	)

friend

Simplify product of indexed expressions (commutative, noncommutative and simple squares), return list of free indices.

Definition at line 779 of file indexed.cpp.

◆ reposition_dummy_indices

bool reposition_dummy_indices	(	ex &	e,
		exvector &	variant_dummy_indices,
		exvector &	moved_indices
	)

friend

Raise/lower dummy indices in a single indexed objects to canonicalize their variance.

Parameters

e	Object to work on
variant_dummy_indices	The set of indices that might need repositioning (will be changed by this function)
moved_indices	The set of indices that have been repositioned (will be changed by this function)

Returns: true if 'e' was changed

Definition at line 618 of file indexed.cpp.

Member Data Documentation

◆ symtree

ex GiNaC::indexed::symtree

protected

Index symmetry (tree of symmetry objects)

Definition at line 192 of file indexed.h.

Referenced by archive(), GiNaC::clifford::do_print_tree(), do_print_tree(), eval(), get_symmetry(), read_archive(), thiscontainer(), and validate().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ indexed() [1/13]

◆ indexed() [2/13]

◆ indexed() [3/13]

◆ indexed() [4/13]

◆ indexed() [5/13]

◆ indexed() [6/13]

◆ indexed() [7/13]

◆ indexed() [8/13]

◆ indexed() [9/13]

◆ indexed() [10/13]

◆ indexed() [11/13]

◆ indexed() [12/13]

◆ indexed() [13/13]

Member Function Documentation

◆ precedence()

◆ info()

◆ eval()

◆ real_part()

◆ imag_part()

◆ get_free_indices()

◆ archive()

◆ read_archive()

◆ derivative()

◆ thiscontainer() [1/2]

◆ thiscontainer() [2/2]

◆ return_type()

◆ return_type_tinfo()

◆ expand()

◆ all_index_values_are()

◆ get_indices()

◆ get_dummy_indices() [1/2]

◆ get_dummy_indices() [2/2]

◆ has_dummy_index_for()

◆ get_symmetry()

◆ printindices()

◆ print_indexed()

◆ do_print()

◆ do_print_latex()

◆ do_print_tree()

◆ validate()

Friends And Related Function Documentation

◆ simplify_indexed

◆ simplify_indexed_product

◆ reposition_dummy_indices

Member Data Documentation

◆ symtree
